IndusBoard Coin: IoT Development Board V2

This product is also available at bulk discounts

Original price was: ₹1,999.Current price is: ₹1,499. + GST Extra

10 in stock

SKU IB-001 Category Tag
Share on
Sale!

Description

Discover IndusBoard, a revolutionary IoT development board meticulously crafted for the modern innovator. Unveiling a compact 3cm powerhouse, this board is not just small; it’s a game-changer in the realm of electronics design.

Board Features:

  • Packed with 3D magnetics compass, 3D acceleration, temperature sensor, Lux Sensor, and 10+ capacitive touch pins

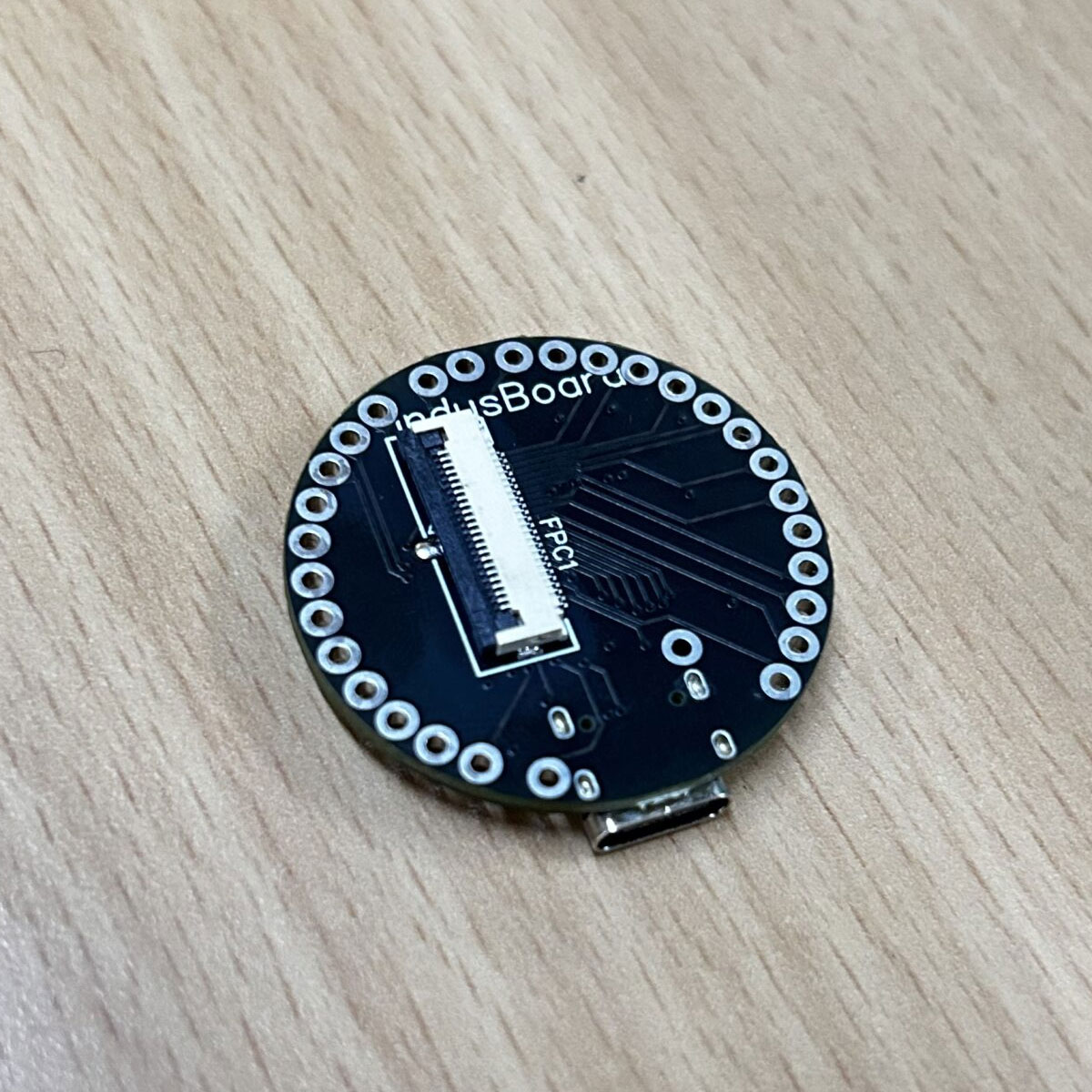

  • FPC Connector (With the FPC connector, you can easily connect IndusBoard Coin V2 to a breadboard or our baseboard for rapid prototyping. It’s also compatible with custom displays, GPS, and other sensors for seamless integration into your miniature devices.)
  • 3cm Size
  • IndusBoard boasts integrated power management, ensuring efficient and optimized energy use for extended functionality.
  • New features: Includes light sensor, more powerful voltage regulator, FPC connector (Sold separately).

Technical Details:

  • THE SIZE: Last but most important point, the size of this board enables you to develop unique wearable or small-sized solutions, which you can’t do with other development boards.
  • INCLUDES IMP SENSORS: Many sensors are included on the board itself so that you can develop IoT or smart applications. Most boards of this size need you to add more modules to add sensors thereby increasing the overall size of your project.
  • 30-PLUS GP IOs: In many boards, there are not enough General Purpose Input Output points. Therefore if your project demands the addition of multiple connections (for example adding peripherals like a keyboard,  display, etc)–it becomes impossible to add.
  • 10-PLUS TOUCH SENSORS: Most popular boards require you to add and connect buttons for any input. But, for IndusBoard, you have 10 touch buttons included. So a variety of input can be obtained by the board itself.
  • FLEXIBLE GP IOs: In typical boards, the GP IOs have fixed functions. However, in IndusBoard you can program and use the GP IOs for whatever function you need.
  • FLEXIBILITY WITH IDE: You can use a variety of IDEs (development platforms) to program this board. Options range from the IDE used by school kids: SCRATCH to the more popular Arduino IDE, to what AI/ML experts use: Micro Python. Simply install the one you like on your PC and connect it to the board with the help of the USB cable provided.
  • SUPPORTS Wi-Fi: The board comes with Wi-Fi MCU modules. This makes the board an ideal choice for a wide variety of application scenarios related to the Internet of Things (IoT), such as wearable electronics and smart homes. It supports 802.11 b/g/n. The max bit rate that can be attained is 150 Mbps while using 802.11 n
  • The onboard connector for the external antenna makes it even more powerful to be used as Mesh Network applications

What is in the box?

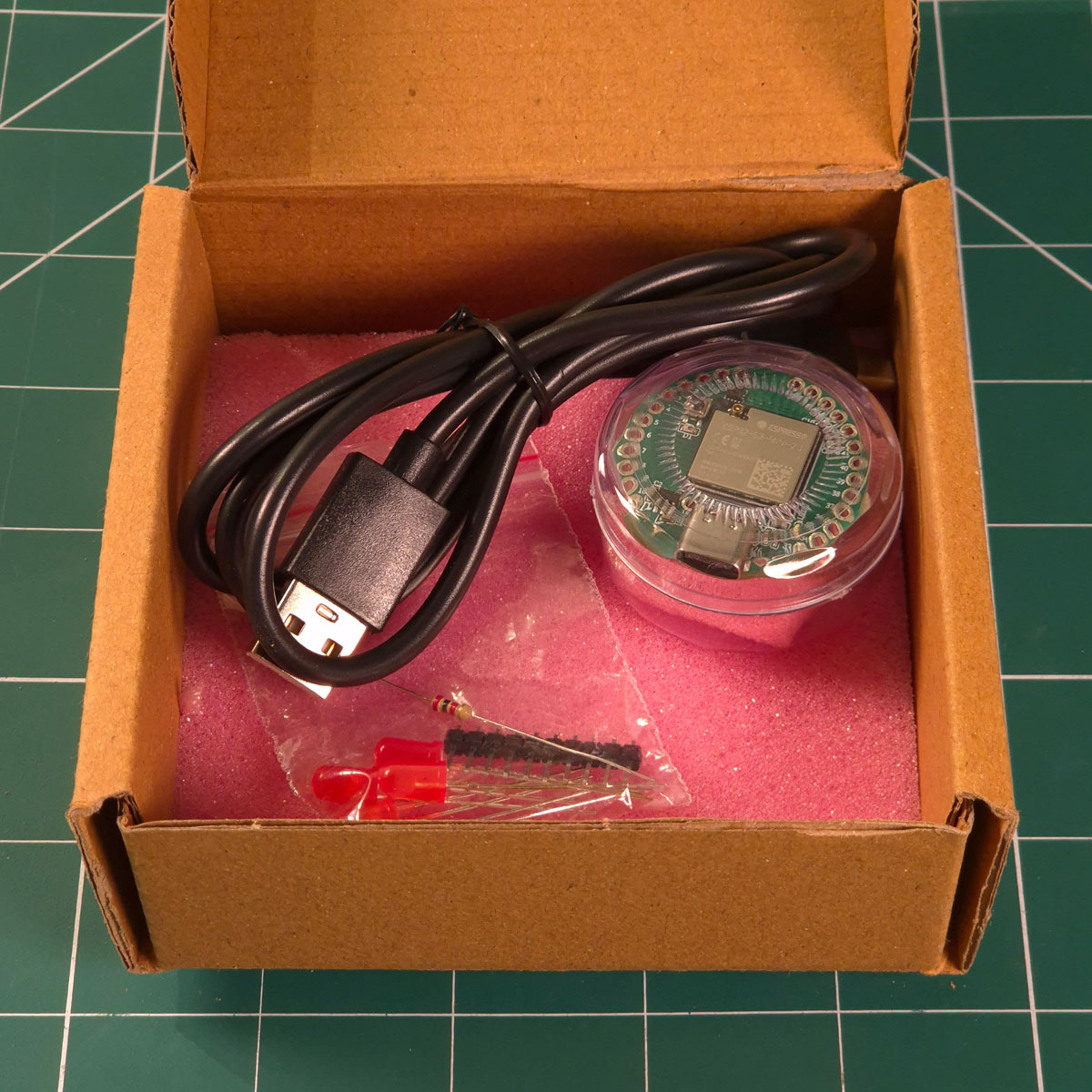

IndusBoard Coin, 1 USB, 1 LED, Header Pins, Box Case

Specifications:

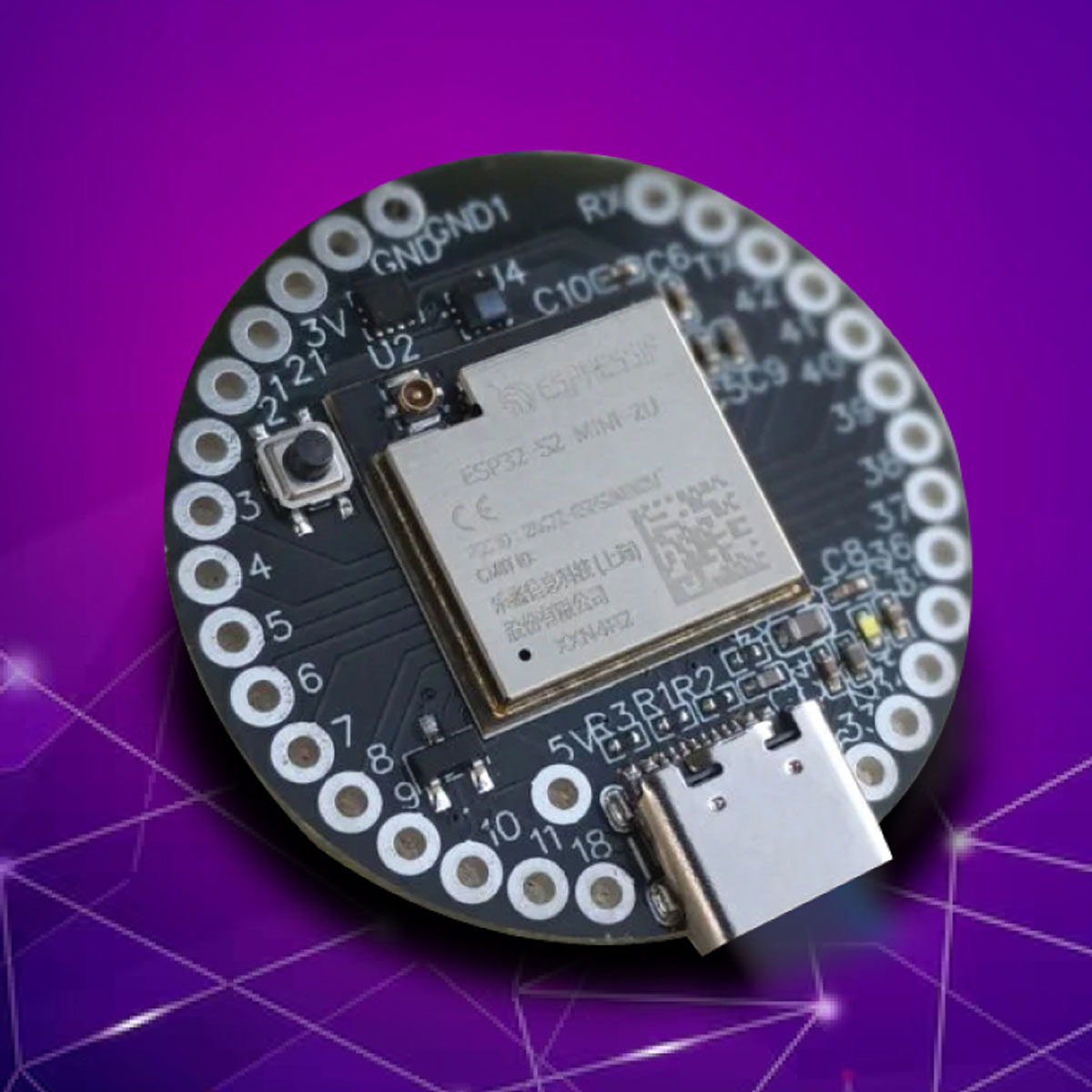

  • CHIP ESP32S2
  • 30+ GPIO with PWM, ANALOG and Multiple I2C Serial and SPI ports
  • I2S, DAC, ADC, CAN, SPI, Camera, Full speed OTG
  • Wi-Fi, Thread Support, Mesh
  • 4 MB flash Plus Extra 2 MB PSRAM in the chip package
  • 2ULP RISC-V co processor
  • Processor CHIP Temperature sensor
  • 240MhZ Processor speed
  • External Flash and RAM Support up to 1GB
  • Sensors- 10 + Capacitive Touch, 3-axis Accelerometer, 3-axis Magnetic Sensor, Temperature sensor, Main Chip Temperature sensor

IndusBoards Vs Others

IndusBoard VS Ardino UNO R3

Feature  IndusBoard  Arduino UNO R3
WFi Yes No
Thread support  Yes No
I2S Yes No
SPI Yes,2 Yes, 1
I2C  Yes, 2 Yes 1
GPIOs  34 20
Touch Sensor 10+ Capacitive Touch GPIO N0
Flash Size  4MB 32kb
Co-Processor  2ULP Risc-V No
32 Bit  Yes N0
Sensors  ACC, MAG, Temp No
CAN (TWI) Yes No
SRAM 320 KB SRAM + 2MB PSRAM No
DAC Up to 2 channels (8-bit DAC) No
USB OTG Yes No
Camera Support  Yes No
Is size fit for wearable? Yes, 3-CM No

IndusBoard VS Ardino BLE Sense

Feature  IndusBoard  Arduino 33 BLE Sense
Connectivity  Wi-Fi BLE
Thread support  Yes No
I2S Yes Yes
SPI Yes,2 Yes 1
I2C  Yes, 2 Yes 1
GPIOs  34 22
Touch Sensor  I/O 10+ Capacitive Touch GPIO No
Flash Size  4MB 1MB flash
Co-Processor  2ULP Risc-V No
32 Bit  Yes ————
Sensors  ACC, MAG, Temp ACC, Humidity, Gesture, Mic
CAN (TWI) Yes No
SRAM 320 KB SRAM + 2MB PSRAM 256 KB SRAM,
DAC Up to 2 channels (8-bit DAC) Yes
USB OTG Yes No
Camera Support  Yes Yes
Is size fit for wearable? Yes, 3-CM No

IndusBoard Vs Node MCU

Feature  IndusBoard  Node MCU
WFi Yes Yes
Thread support  Yes Yes
I2S Yes Yes
SPI Yes,2 Yes,1
I2C  Yes, 2 Yes 1
GPIOs  34 17
Touch Sensor  10+ Capacitive Touch GPIO N0
Flash Size  4MB 32kb
Co-Processor  2ULP Risc-V No
32 Bit  Yes N0
Sensors  ACC, MAG, Temp No
CAN  Yes No
SRAM 320 KB SRAM + 2MB PSRAM 64Kb
DAC Up to 2 channels (8-bit DAC) No
USB OTG Yes No
Camera Support  Yes No
Is size fit for wearable? Yes, 3-Cm No
Clock Speed  240 MHz 80 MHz

IndusBoard VS Raspberry Pi RP2040

Feature  IndusBoard  Raspberry Pi RP2040
WFi Yes No
Thread support  Yes No
I2S Yes No
SPI Yes,2 Yes,2
I2C  Yes, 2 Yes 2
GPIOs  34 26
Touch Sensor  10+ Capacitive Touch GPIO N0
Flash Size  4MB 2 MB
Co-Processor  2ULP Risc-V No
32 Bit  Yes N0
Sensors  ACC, MAG, Temp No
CAN  Yes No
SRAM 320 KB SRAM + 2MB PSRAM 264KB of SRAM
DAC Up to 2 channels (8-bit DAC) Yes
USB OTG Yes No
Camera Support  Yes Yes
Is size fit for wearable? Yes, 3-Cm No

IndusBoard VS SEEDXIO C3

Feature  IndusBoard  Seeed XIO C3
WFi Yes Yes
Thread support  Yes Yes
I2S Yes Yes
SPI Yes,2 Yes
I2C  Yes, 2 Yes
GPIOs  34 13
Touch Sensor  10+ Capacitive Touch GPIO No
Flash Size  4MB 4MB
Co-Processor  2ULP Risc-V No
32 Bit  Yes Yes
Sensors  ACC, MAG, Temp No
CAN  Yes Yes
SRAM 320 KB SRAM + 2MB PSRAM 400KB SRAM,
DAC Up to 2 channels (8-bit DAC) Yes
USB OTG Yes No
Camera Support  Yes Yes
Is size fit for wearable? Yes, 3-Cm Yes

IndusBoard Vs Adafruit Metro

Feature  IndusBoard  Adafruit   Metro
Wi-Fi Yes No
Thread support  Yes No
I2S Yes No
SPI Yes,2 Yes
I2C  Yes, 2 Yes
GPIOs  34 20
Touch Sensor  10+ Capacitive Touch GPIO No
Flash Size  4MB 32-Kb
Co-Processor  2ULP Risc-V No
32 Bit  Yes No
Sensors  ACC, MAG, Temp No
CAN  Yes No
SRAM 320 KB SRAM + 2MB PSRAM 2KB RAM,
DAC Up to 2 channels (8-bit DAC) No
USB OTG Yes No
Camera Support  Yes No
Is size fit for wearable? Yes, 3-Cm No

* Get a GST invoice and save up to 18% on business purchases.

IndusBoard Coin out of stock? Subscribe to get an alert when it comes back in stock.

Share your valuable opinions

15 reviews for IndusBoard Coin: IoT Development Board V2

  1. Biju Varkey –

    Just wrapped up my first project with the IndusBoard coin. thoroughly impressed with the board’s compact size without sacrificing I/O options and sensor integration

  2. Brij Mahto –

    I have invested in IndusBoard Coin for prototyping a Smartwatch for a worker Health tracking system, It’s Just an excellent board for such a design because of its small size

  3. Kunal Das –

    Indusboard is a very good product, It is of very compact size and easy for programming. With the help of Indusboard, I made a wearable device with customizable sensors and it is giving very good results. With the help of EFY, this made it even easier. This is a very good achievement for me. A heartful thanks to Mr. Sinha for helping me.

  4. PriyankaRaj Raj –

    I am using indusboard coin for loT connected dashboard design and it’s just perfect board for my need.

  5. Santosh Singh Parmar –

    I am using indusboard coin for loT connected dashboard design and it’s just perfect board for my need.

  6. Jitendra Singh –

    I have invested in indusbaord Coin for my team project it’s just a perfect board for my need I have smallest designed GPS location tracking system…thanks to EFY.

  7. Rajeshwar –

    Indusboard provided by You is easy to configure and cheap for students like me

  8. Milind Phal –

    I recently had the opportunity to review the IndusBoard micro computer module, and I must say, I was thoroughly impressed. This compact device packs a punch with its amazing performance, small size, and plethora of features and sensors.

    One of the standout features of the IndusBoard is its performance. Despite its small size, it delivers exceptional processing power, making it suitable for a wide range of applications. Whether you’re running complex algorithms or handling multiple tasks simultaneously, this module handles everything with ease.

    The size of the IndusBoard is another highlight. It’s incredibly compact, making it ideal for projects where space is limited. This makes it a perfect choice for IoT devices, robotics, automation systems, and more, where every inch of space counts.

    What sets the IndusBoard apart is its rich set of features and sensors. It comes equipped with a variety of sensors, including temperature, humidity, motion, and more, allowing for comprehensive data collection and analysis. Additionally, it supports connectivity options like Bluetooth, Wi-Fi, and GPIO, providing flexibility in communication and integration with other devices.

    Overall, the IndusBoard is a powerhouse in a small package. Its impressive performance, compact size, and abundance of features make it a top choice for anyone looking to build innovative and advanced projects. I highly recommend it to anyone in need of a reliable and versatile micro computer module.

  9. Vinjamuri Narasimharao –

    I have purchased the “Indusboard coin” last week. But I couldnot go ahead as lack of jumper cables. At least you could provide a link , that where i can get these jumpers !

    • Abhimanyu Rathore –

      Hi Vinjamuri Narasimharao, we have already replied to your query through Email. Thank you.

  10. Abhishek –

    Indus board is not available for individual purchase

    • Abhimanyu Rathore –

      We have updated the stocks, now you can purchase it from above.

  11. Prabhakar Kundurthy –

    Just got to know about this coin based werables . Interested in this.

  12. Mukund Hole –

    Great, power consumption?

  13. Anantha –

    What is the 3D acceleration chip? Please provide the number/specification.
    Can we get 3D acceleration along 3D Gyro readings?

  14. Mahammadsalim Paniband –

    It’s very good to know about electronics.

  15. S Prasad –

    Dear,
    I needed a modules for voice call in same two modules on iot platform. Please do the needful help. I am old followers to EFY…

    Thank you
    S prasad
    Delhi.
